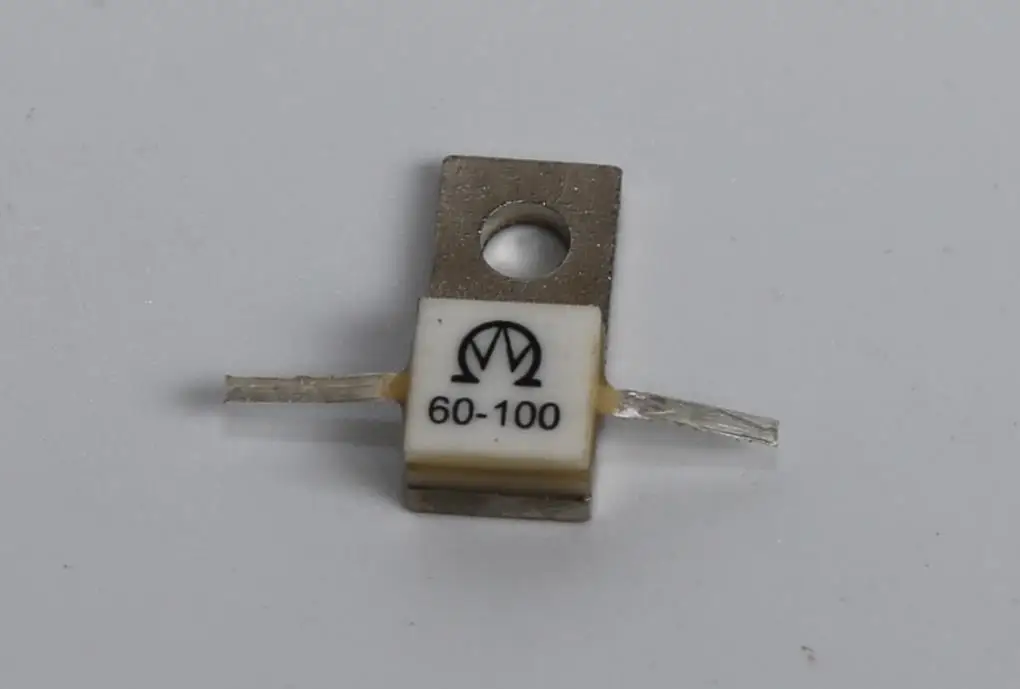

High Power 60W 100R Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 0~2GHz Frequency for RF Applications

Place of Origin : China

Brand Name : BONENS

Model Number : DRFG-214

MOQ : 100

Resistance : 1Ω-500Ω

Resistance Tolerance : ±5%

Frequency Range : 0~2GHz

Standing Wave Ratio : 1.2-1.3

Withstand Voltage : 500V/1mm

Substrate Material : BeO

Rated Power : 60W

Temperature Range : -55°C~+165°C

TCR : ±300×10-6/°C

Insulation Resistance : ≥1GΩ

Terminal Strength : 10N, 5S

Solderability : 240℃, 3s

Load Life : ΔR≤±5%

Vibration Resistance : 10-500Hz, 0.75mm, 6h

Technology : Cermet

Contact Now

Product Description
Power Load Sheets, RF Resistors, Flange Resistors, Microstrip Resistors, RF Thick Film Resistors, Microwave Resistors, Load Resistors, Attenuation Resistors, Coupler Resistors
High Power 60W 100R Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 0~2GHz Frequency for RF Applications
Product features and uses
1.Small volume, large power capacity, good high-frequency characteristics, reliable performance, and convenient installation.
2.Suitable for power distributor, isolation resistance and terminal load resistor.
High Power 60W 100R Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 0~2GHz Frequency for RF Applications
High Power 60W 100R Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 0~2GHz Frequency for RF Applications
High Power 60W 100R Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 0~2GHz Frequency for RF Applications
High Power 60W 100R Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 0~2GHz Frequency for RF Applications
High Power 60W 100R Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 0~2GHz Frequency for RF Applications
High Power 60W 100R Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 0~2GHz Frequency for RF Applications
High Power 60W 100R Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 0~2GHz Frequency for RF Applications
High Power 60W 100R Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 0~2GHz Frequency for RF Applications
High Power 60W 100R Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 0~2GHz Frequency for RF Applications
High Power 60W 100R Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 0~2GHz Frequency for RF Applications
High Power 60W 100R Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 0~2GHz Frequency for RF Applications
High Power 60W 100R Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 0~2GHz Frequency for RF Applications
High Power 60W 100R Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 0~2GHz Frequency for RF Applications
High Power 60W 100R Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 0~2GHz Frequency for RF Applications

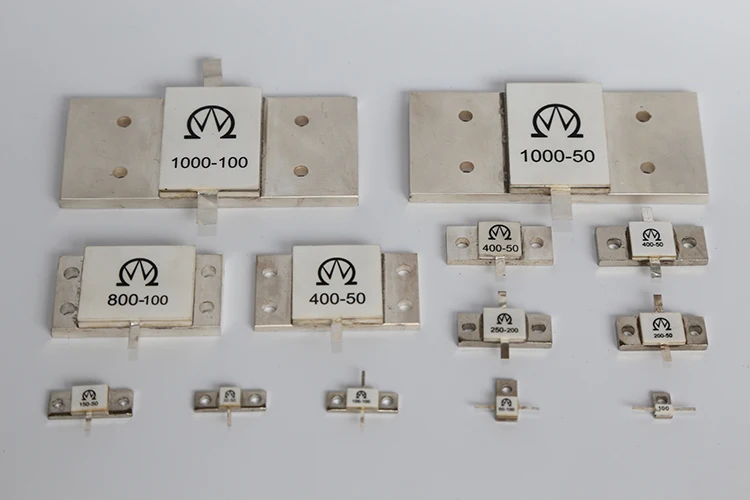

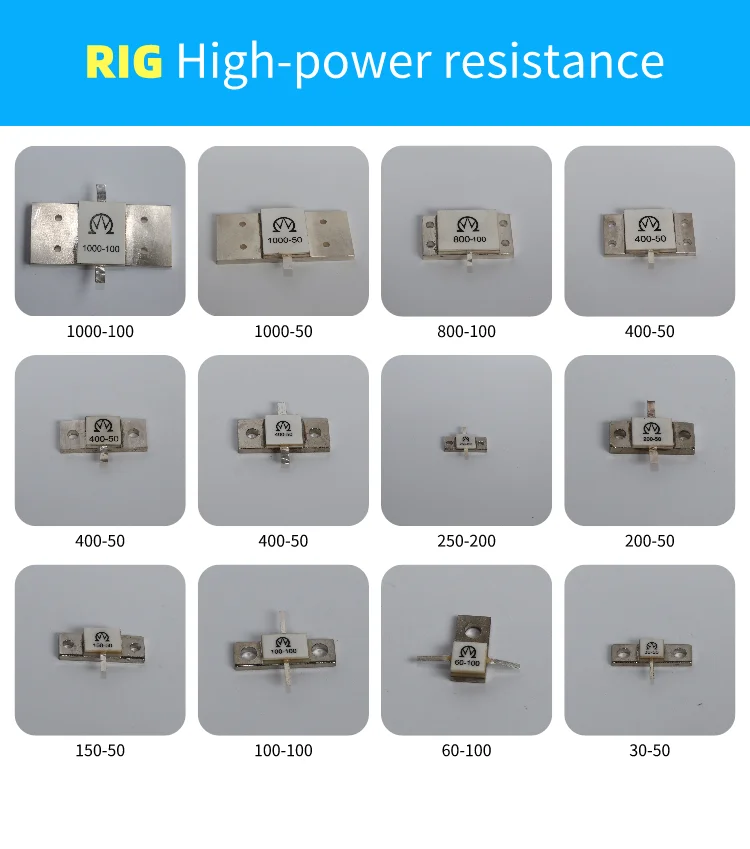

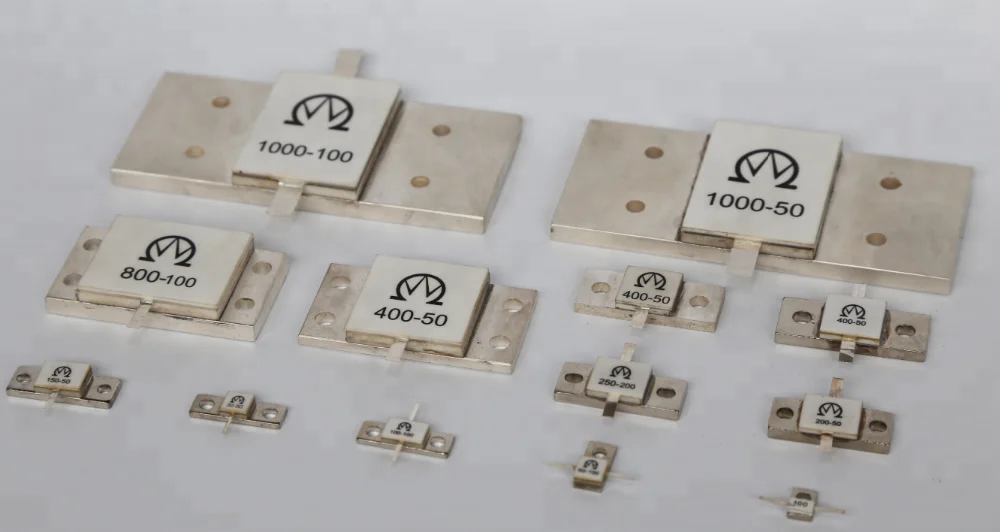

RIG high-power resistance features: excellent high-frequency characteristics, thick film non-inductive design, suitable for reflow soldering and wave soldering, low assembly cost, and matching with SMT automatic mounting equipment, high mechanical strength and high stability. It has a long service life, and is used in RF circuits, high-frequency circuit isolation resistors, communication base station terminal loads, couplers, etc...
High Power 60W 100R Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 0~2GHz Frequency for RF Applications
Application scope
Flange double-lead resistor is one of the commonly used passive components in electronic circuits, which has the role of balancing circuits. It adjusts the resistance value in the circuit so that the current or voltage in the circuit reaches an equilibrium
state, so as to achieve stable operation of the circuit. It plays an important role in electronic devices and communication systems

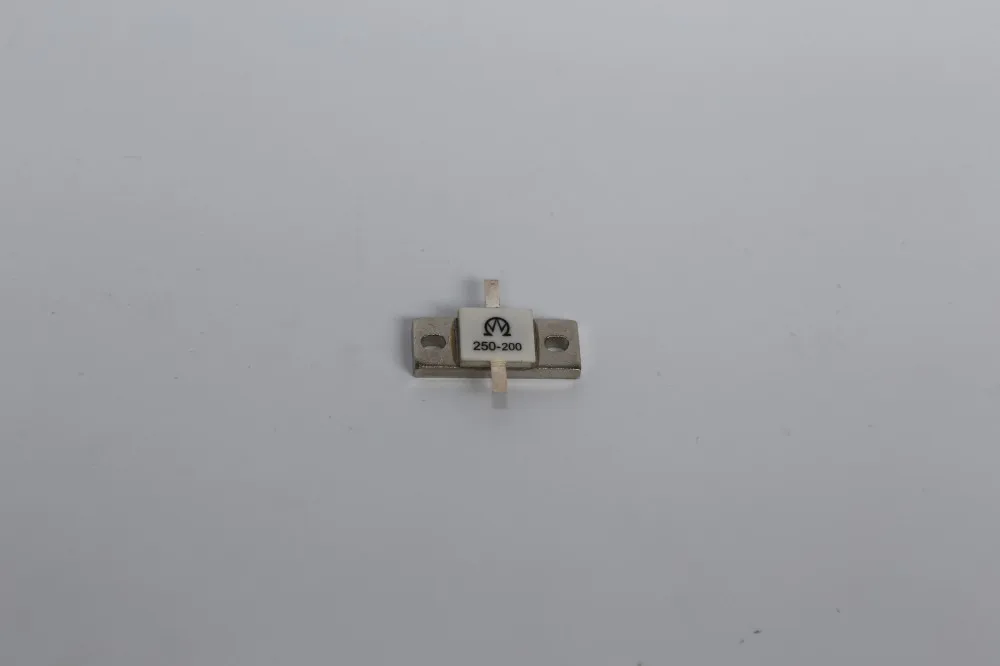

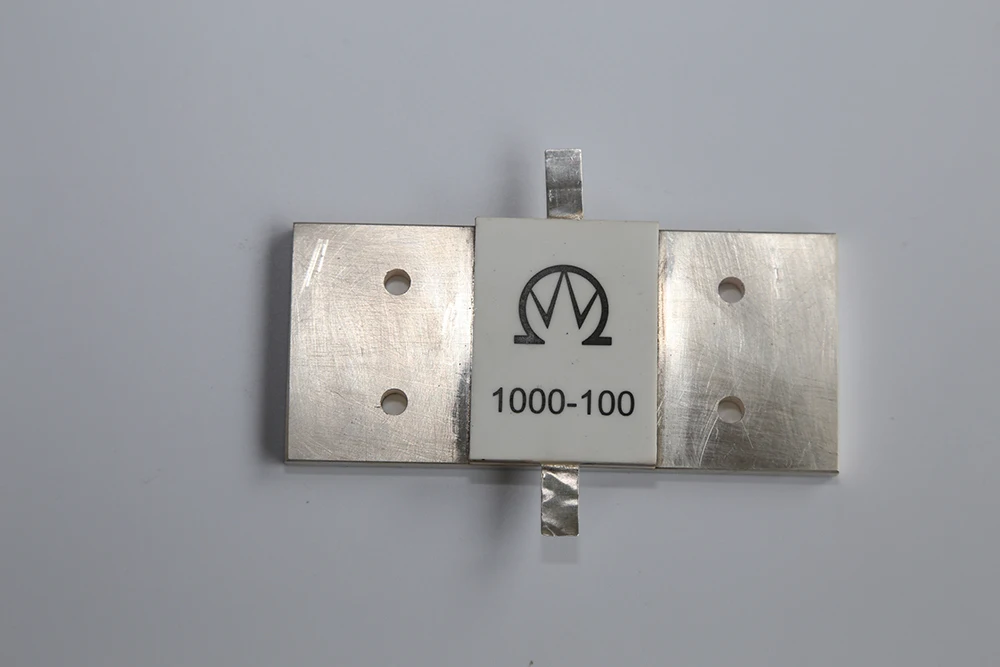

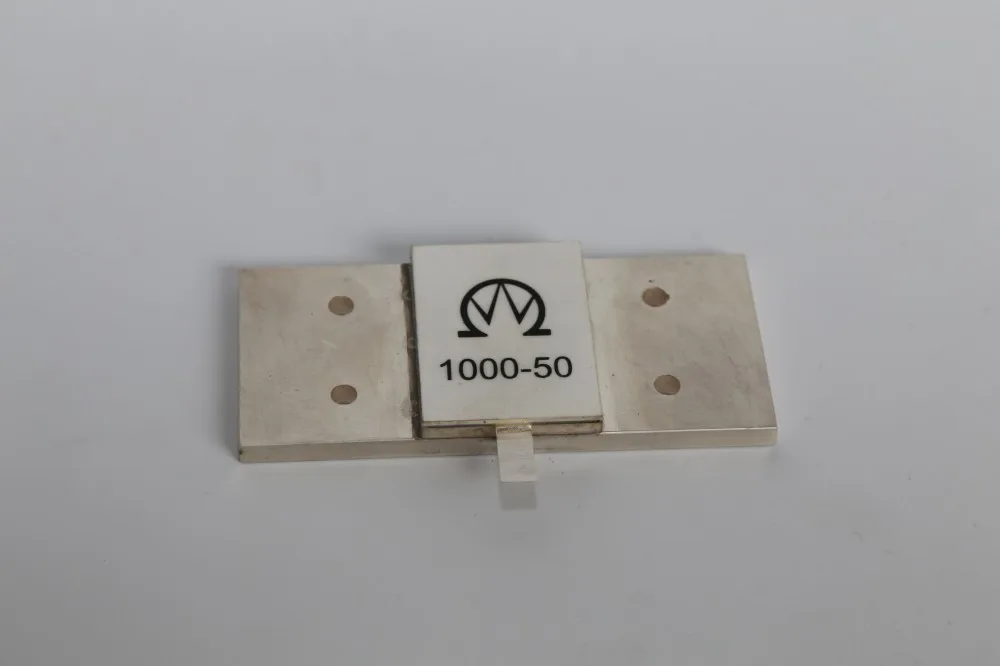

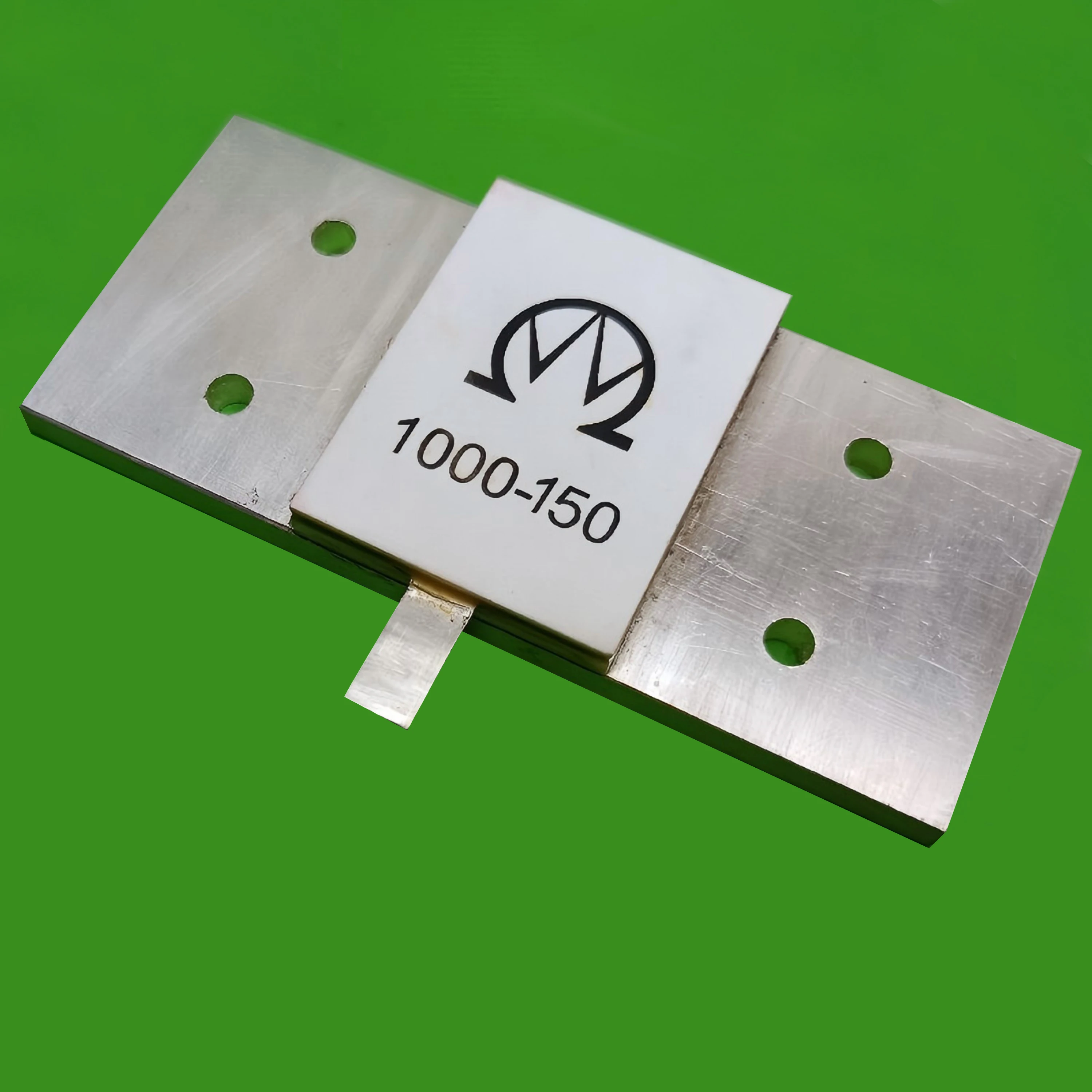

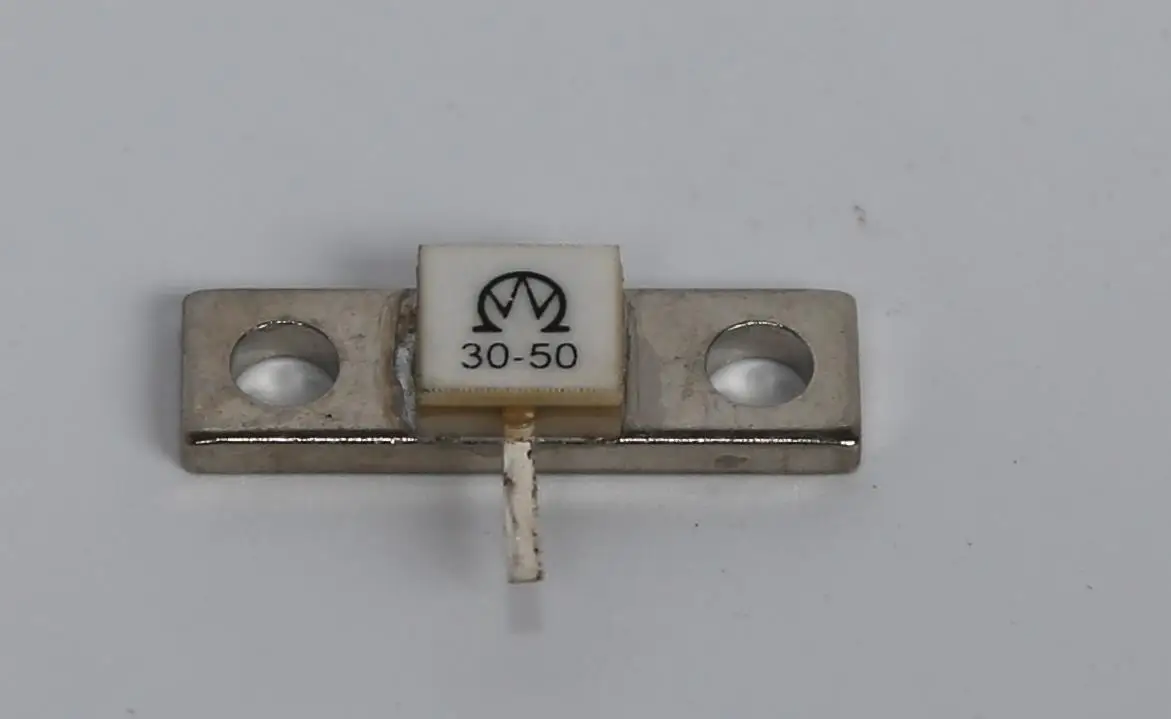

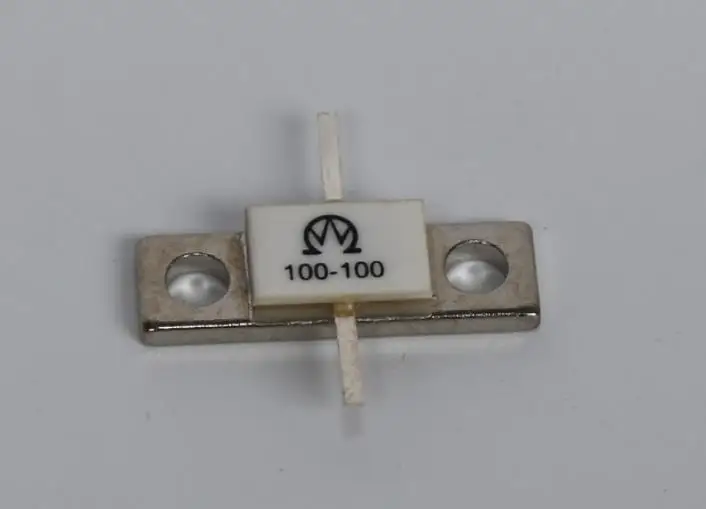

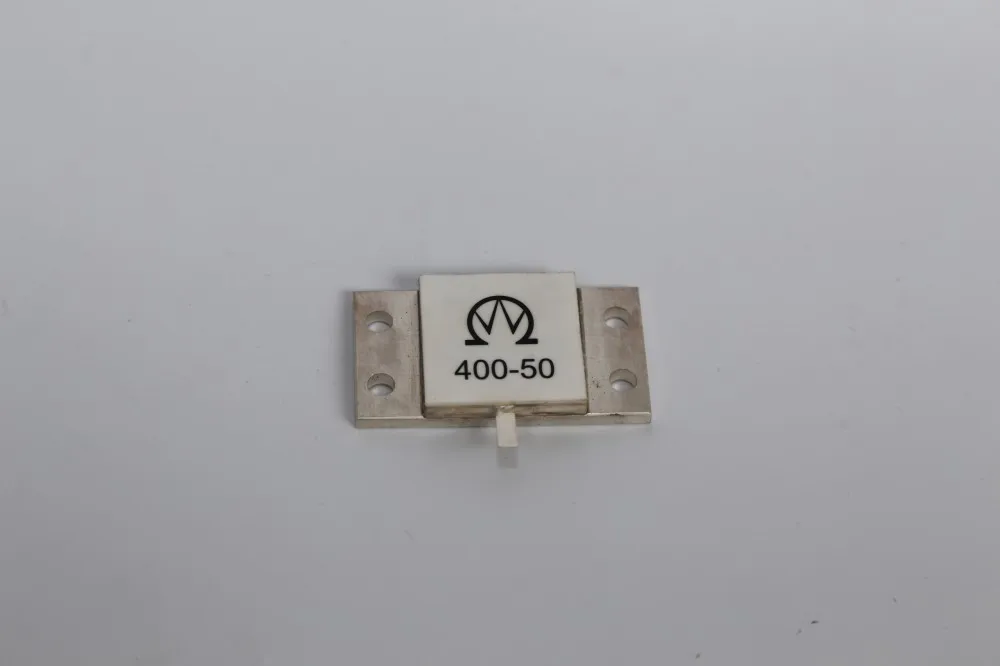

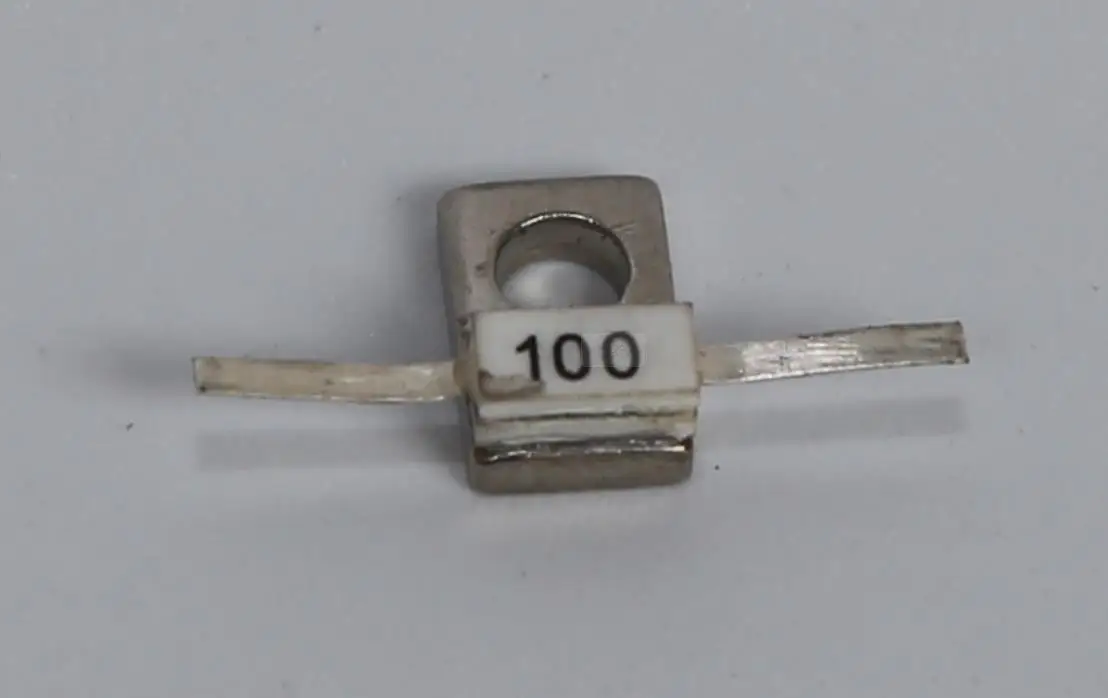

A flanged dual-lead resistor is assembled by welding a flange and a dual-lead resistor together. The flange is designed for installation in circuits and also enables better heat dissipation for the resistor during operation.
High Power 60W 100R Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 0~2GHz Frequency for RF Applications
High Power 60W 100R Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 0~2GHz Frequency for RF Applications
Features
Easy Installation: The flanged dual-lead resistor adopts standard dimensions, making it easy to install without requiring special
installation tools.
Good Stability: The flanged dual-lead resistor is made of high-quality resistor material, ensuring stable resistance value and a
small temperature coefficient.
High Precision: The flanged dual-lead resistor utilizes high-precision resistor material, offering high accuracy and strong
reliability.
Strong Interchangeability: The flanged dual-lead resistor features strong interchangeability and can replace resistors of different specifications and models.
High Power 60W 100R Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 0~2GHz Frequency for RF Applications
Specification
Electrical Characteristics
Range of nominal resistance
1 ~500Ω
Resistance tolerance
±5%
Frequency range
0~2GHz
Standing wave ratio
1.2~1.3
Insulation resistance
≥ 1GΩ
Withstand voltage
500V/1 mm (Substrate thickness)
Environment Characteristics
Rated power
1~1000W (70°C)
Temperature range
-55°C~+165°C
TCR
±300×10-6/°C
Temperature shock (-55°C/+125°C, 3 times)
ΔR≤±5%R
Moisture proof (GJB306A-96-Method106)
ΔR≤±5%R
Vibration (10-500HZ, 0.75mm, 6h)
ΔR≤±3%R, No mechanical damage
Test at low temperature (-55°C, 24h)
ΔR≤±5%R
Load life (96)
ΔR≤±5%
Collision
ΔR≤±3%R
Physical Characteristics
Terminal strength(10N,5S)
No loose and fall off
Solderability(240℃,3s)
Tin layer covering area of 95%
Packing & Delivery
High Power 60W 100R Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 0~2GHz Frequency for RF Applications
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
High Power 60W 100R Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 0~2GHz Frequency for RF Applications
High Power 60W 100R Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 0~2GHz Frequency for RF Applications
High Power 60W 100R Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 0~2GHz Frequency for RF Applications
High Power 60W 100R Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 0~2GHz Frequency for RF Applications
High Power 60W 100R Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 0~2GHz Frequency for RF Applications
High Power 60W 100R Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 0~2GHz Frequency for RF Applications
High Power 60W 100R Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 0~2GHz Frequency for RF Applications

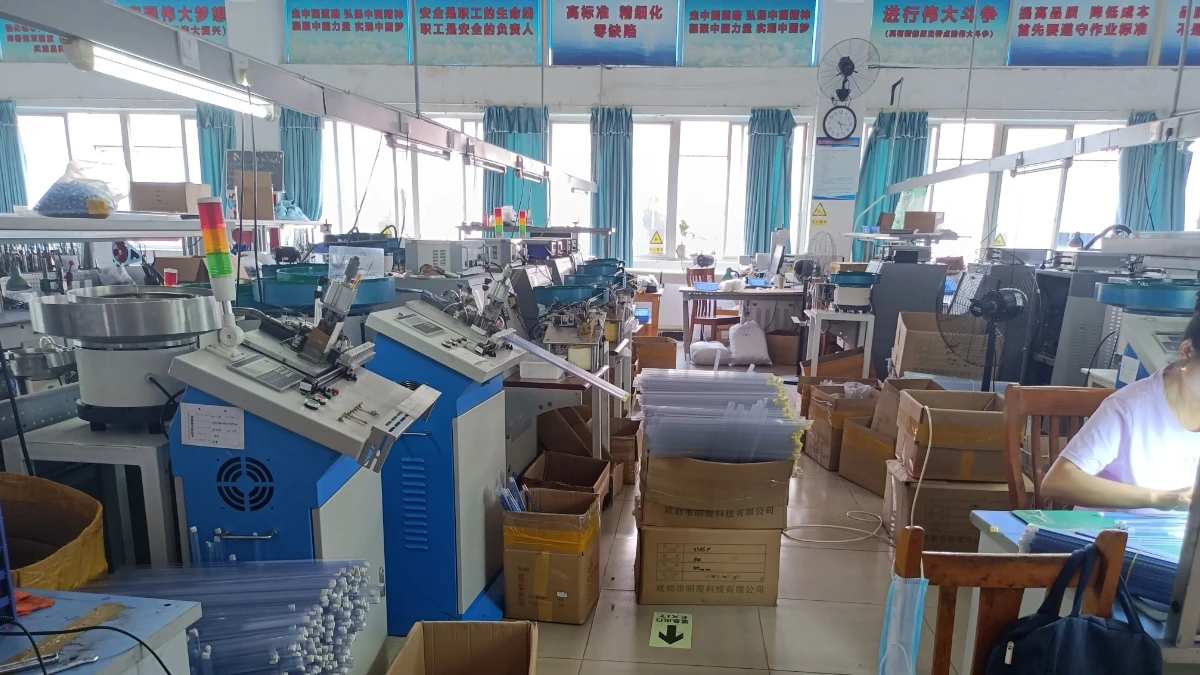

Sichuan Qixing Electronics Co., Ltd. is specialized in manufacturing high-power resisters, wire-wound potentiometers, trimmer potentiometers, rotary carbon potentiometers, precision parts and so on ...... Engaged in civil and war industrial products for many years, we enfore ISO9001, ISO2000 quality control systems strictly. Our products are widely used in electronic communication products, instrument measuring appliances, cable TV equipments, electrician products, color television, color console, video and audio products and many other products. In order to maintain a leading position in the industry, we have further strengthened our product development ability. Moreover, we took the lead in introducing the world leading high temperature polymerization furnaces from the USA to establish ceramic resistance element production line. QIXING has 500 workers at present, among whom we are proud of our 56 professionals(35 of them got over 10 years' experience in potentiometer/ high-power resister). To satisfy our customers' needs, we provide product design and developing servises, OEM services, best aftersales servises and give best support once customer got a new idea. Providing massive acknowledged products to the war and civil industry units, our company has made certain
contribution to the motherland national defense and the thriving of our economy. "Technical innovation, striving for perfection, keeping on improving, continuously satisfying customers" is our company's quality policy, and "let customers be satisfied completely" is our goal. All our staff members are zealously creating a magnificent tomorrow with wit and diligence!
High Power 60W 100R Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 0~2GHz Frequency for RF Applications
FAQ
1. who are we?
We are based in Sichuan, China, start from 2005,sell to Domestic Market(70.00%),Western Europe(8.00%),North America(5.00%),South
Asia(3.00%),Eastern Asia(3.00%),South America(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%),Mid East(2.00%),Southeast
Asia(2.00%),Oceania(1.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Potentiometer , Resistor, EMI Filter, Knob, Switch

4. why should you buy from us not from other suppliers?
Our company is establsihed in 2005 ,which mainly develops and manufactures different types of potentiometer,ac dc noise filter,
and ceramic power resistor and is a professional manufacturer ensuring high quality, best services and best price.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
